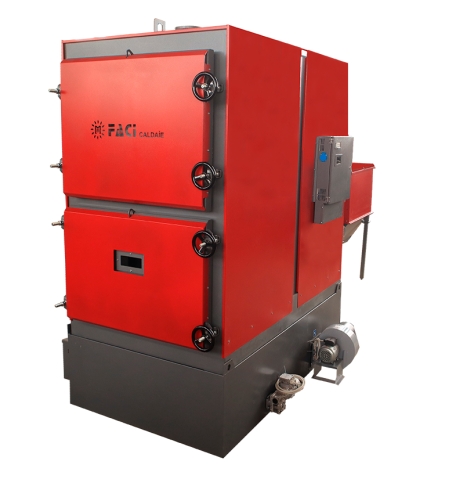

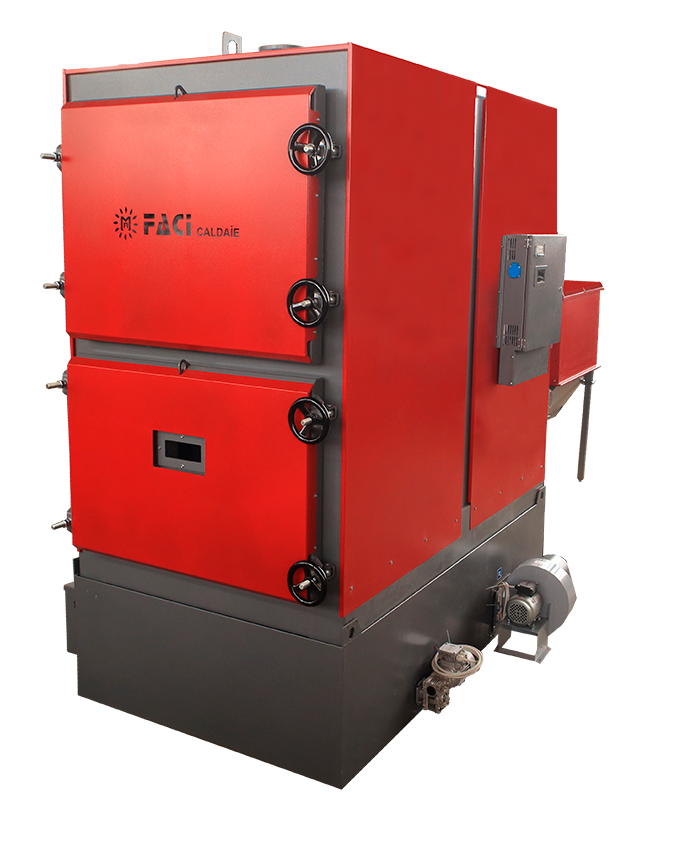

Wood chip boiler FACI FSS 1000

NEW
CONTROL SYSTEM
Full control of all functions
of the boiler from your smartphone
The most economy type of heating
Maximum safety and protection against fire
Convenient temperature and flame output control
Maximum efficiency - minimum fuel consumption
Reserve modes of operation - on wood and pellets
Touch control system
Characteristics:
  • Heat output capacity1000 kW
  • Hopper capacity1000 l
  • Fuelchips, pellets and wood in manual mode
  • Boiler dimensions with the rear location of the hopper LxWhD3130х3620х2930 mm
  • Chimney diameter380 mm
  • Weight4700 kg
Fuel Usage:
Choose a configuration:
Complete set includes:
Wi-Fi and Ethernet Internet module
Smartphone control
Ask for quotation
Complete set includes:
GSM module
Wi-Fi and Ethernet Internet module
Smartphone control
Ask for quotation
Complete set includes:
GSM module
Auto-cleaning of the heat exchanger
Smoke aspirator ( smoke suction)
Wi-Fi and Ethernet internet module
Smartphone control
Ask for quotation

Boiler description:

Italian boiler on wood chips and biomass

Italian boiler on wood chips and biomass

Boiler on wood chips FACI FSS with a unique three-cylinder high-efficiency heat exchanger is designed for heating infrastructure facilities using wood chips with natural humidity as fuel.

Realizing the importance of uninterrupted operation in all situations, Italian engineers have developed an algorithm of the boiler on standby fuel - already in the basic boiler package works on pellets in automatic mode, and on coal, wood and briquettes in manual mode. Optionally, the boiler can be equipped with additional equipment for operation on coal in automatic mode.

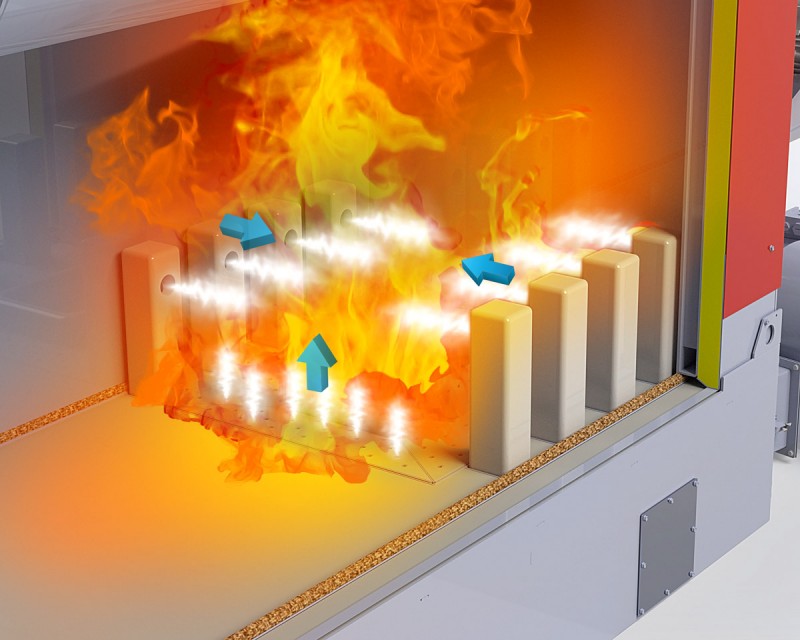

Unique cast iron burner

The Italian group of FACI engineers has developed a unique burner for wood chips boilers that has two burning zones (the main zone and the afterburning zone).

This way of burning chips of natural moisture, when unburned fuel from the main zone of the burner under its own weight falls into the second zone and there burns out completely, is perhaps the most effective way of burning wood chips.

Trajectory of air delivery and movement in the combustion zone is unmatched on the market and is the pride of FACI factories.

Two-zone woodchip burners FACI with a unique system of air has perfectly proved itself among European consumers and are rightly considered the most popular woodchip burners in Europe and Russia chip boilers.

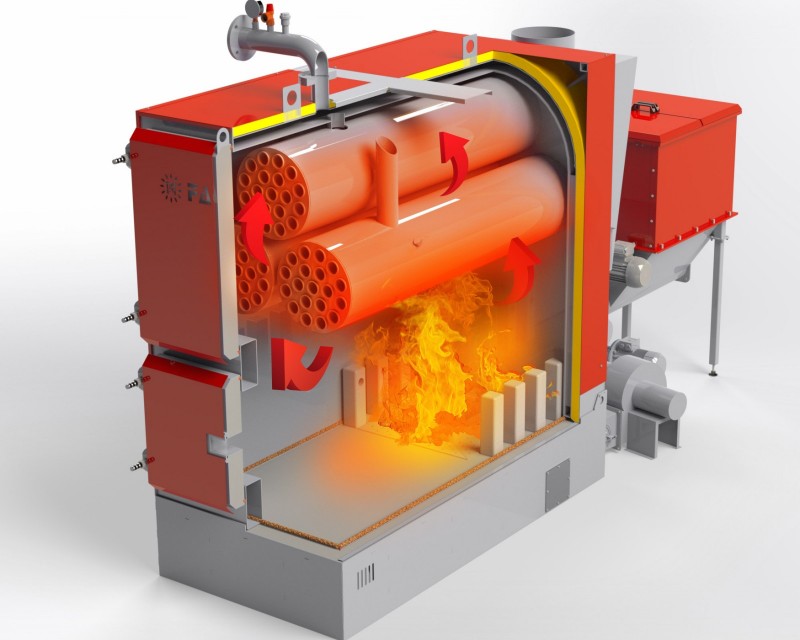

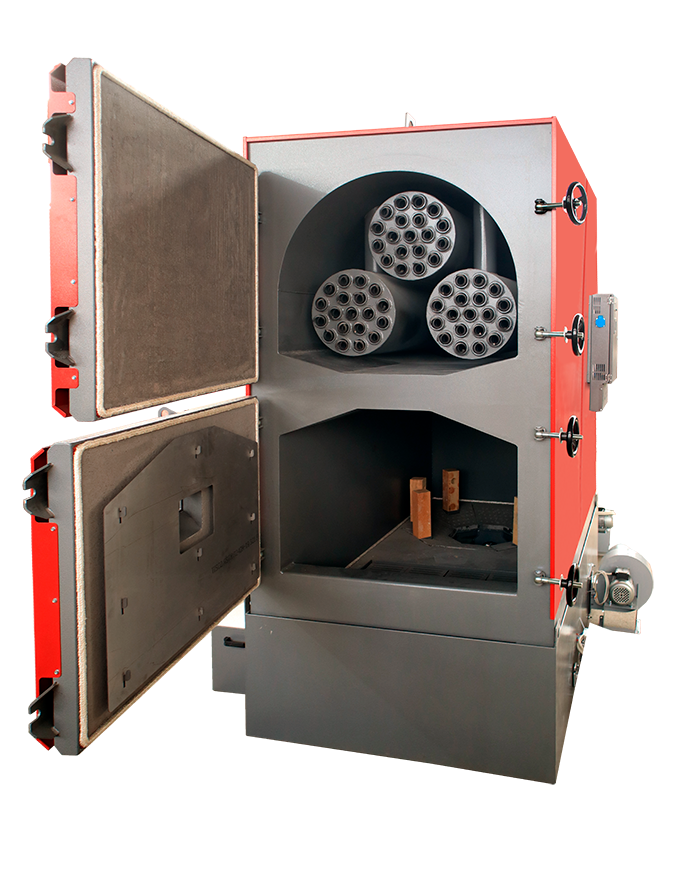

Three-cylinder heat exchanger

Horizontal heat exchangers - the hallmark of FACI boilers. Boilers are designed so that the exhaust gases from the burned fuel pass many times around the cylindrical heat exchangers.

This allows the maximum heat removal from the flue gases and achieve an efficiency of more than 90%.

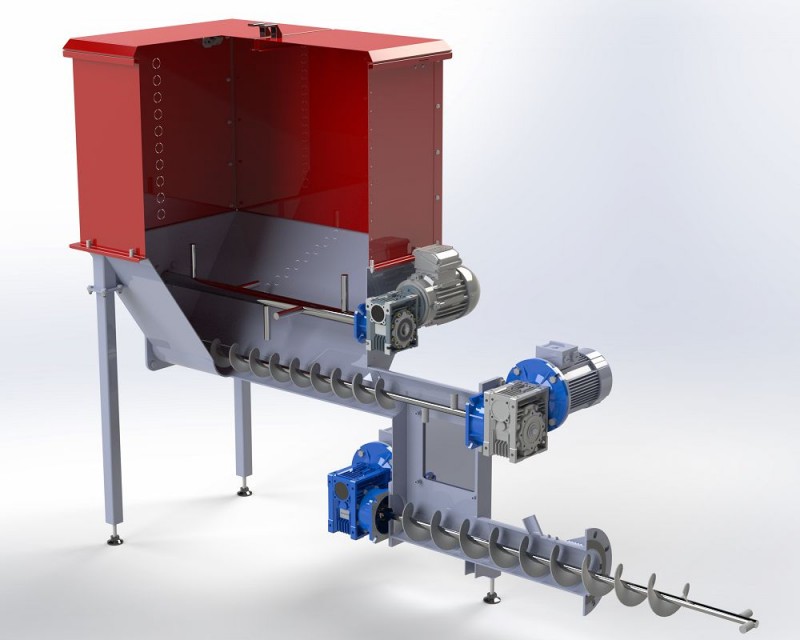

Twin-screw fuel feeder with a stirrer

The FACI FSS fuel feeder is one of the safest in the world. Safety is achieved by the installation of 2 reinforced augers with independent motor reducers of increased power, which allowed to separate the fuel feeding zone into the burner and the operational boiler hopper.

The anti-smoke allows air to be additionally routed into the combustion zone through the lower screw of the boiler, which prevents smoke in the boiler room through the operational hopper.

The implementation of these solutions allowed to achieve maximum safety in the operation of equipment, which is especially important at sites with full automation and without the constant presence of staff.

Given the specifics of fuel (wood chips) Russian-Italian group of engineers FACI developed a unique system of turning the fuel in the operational boiler hopper, it allows you to avoid the hang of the chips in the hopper and stop the process of combustion.

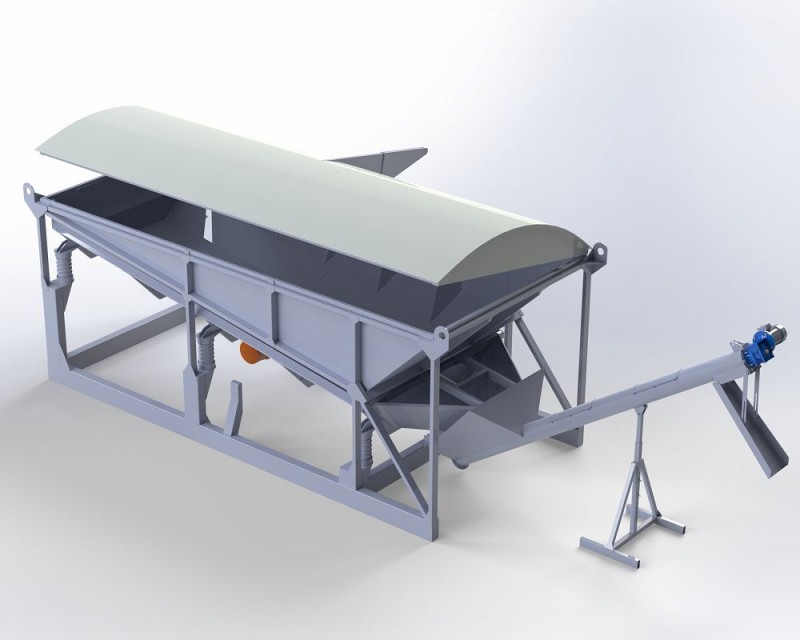

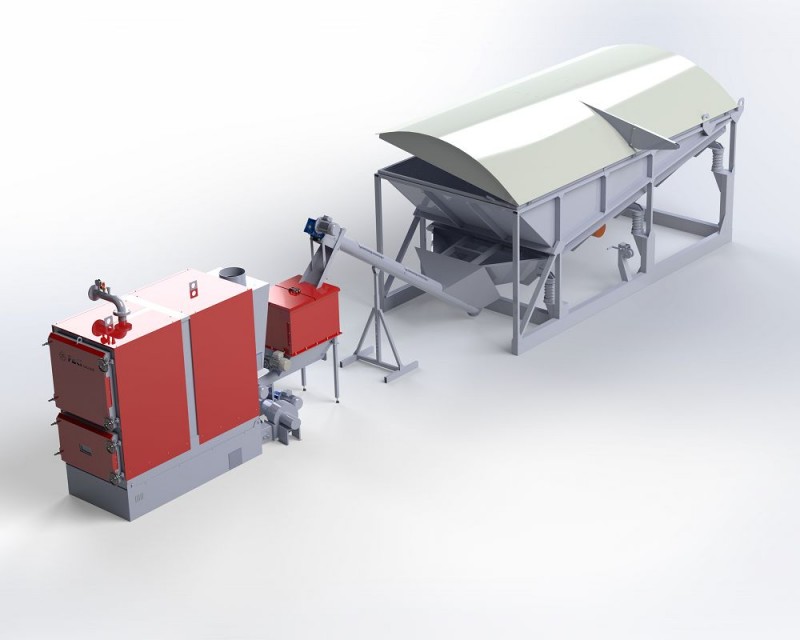

Vibration hopper for 8.5 m3

Already in the basic configuration provides the optional ability to install additional vibro hopper capacity of 8.5 cubic meters, which allows the use of boilers in small businesses - facilities with small area, and as part of operating or newly designed block-modular boilers used by heating companies and large enterprises for heating infrastructure

Given the specifics of fuel (wood chips) Russian-Italian group of engineers FACI developed a unique system of turning the fuel in the operational boiler hopper, it allows you to avoid the hang of the chips in the hopper and stop the process of combustion.

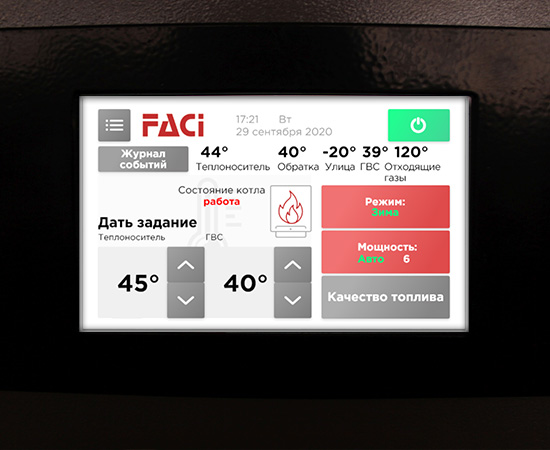

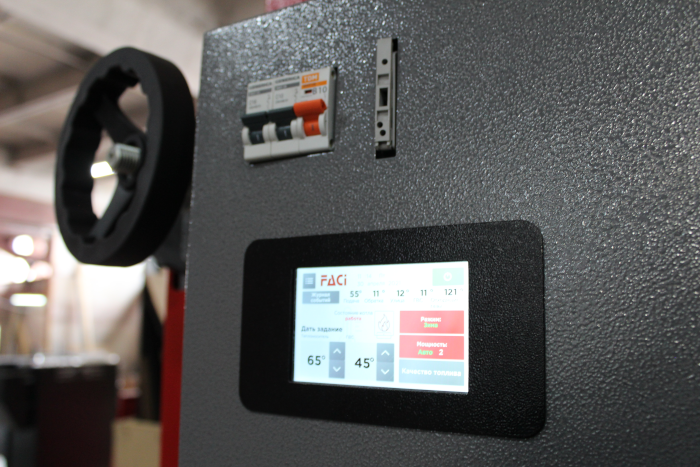

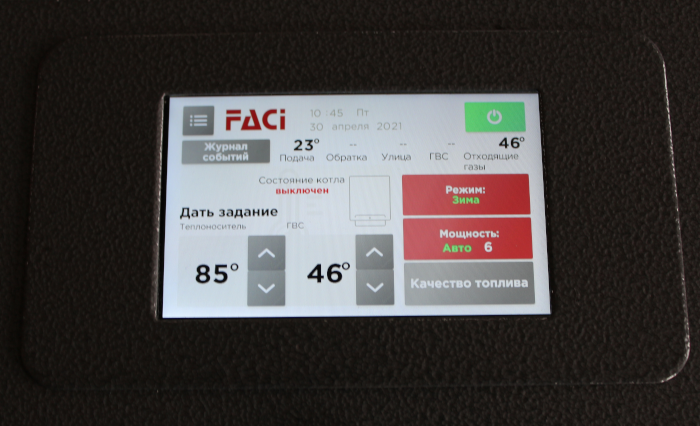

Touch control system
High level of automation is achieved by the new touch screen control system in Russian language. The display has an intuitive touch screen, where all algorithms have been carefully calibrated and tested.
